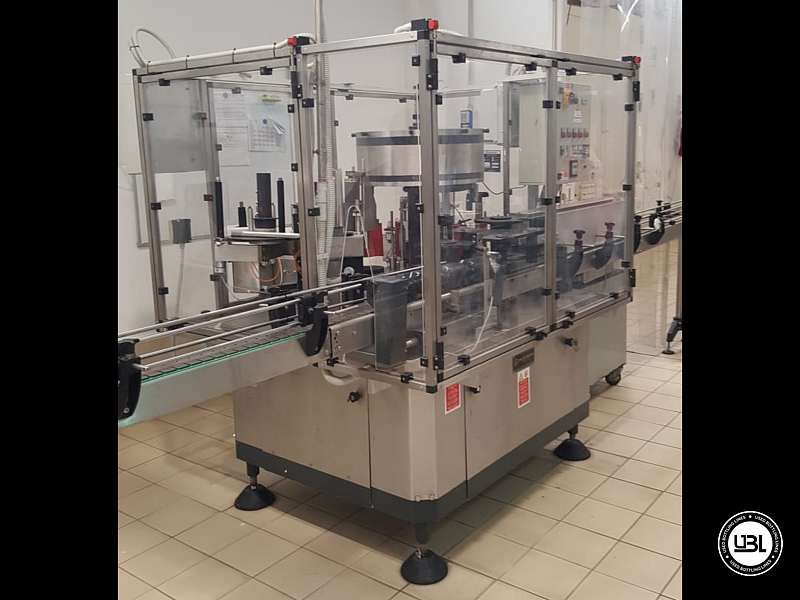

  • Photo #1 of Used Bottle Labeler Eticap AR 4T 2S 4 Heads 2500 Bph

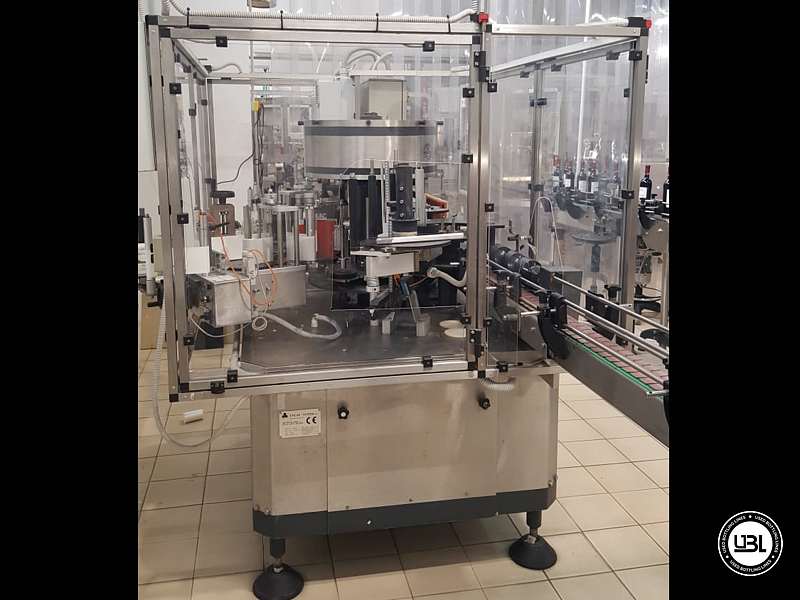

  • Photo #2 of Used Bottle Labeler Eticap AR 4T 2S 4 Heads 2500 Bph

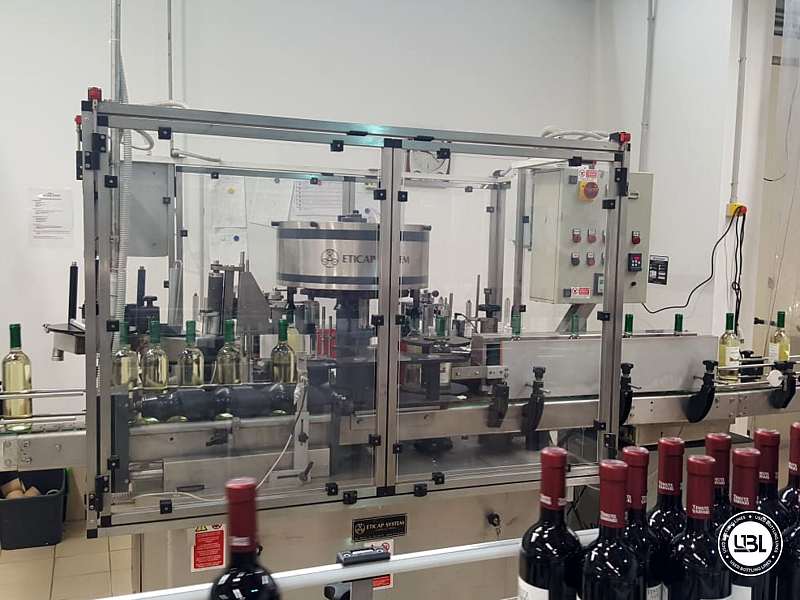

  • Photo #3 of Used Bottle Labeler Eticap AR 4T 2S 4 Heads 2500 Bph

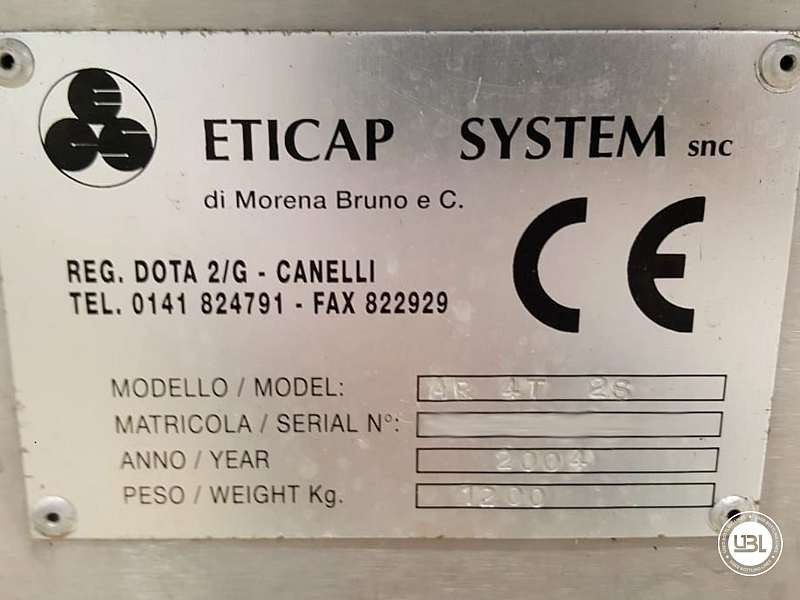

  • Photo #4 of Used Bottle Labeler Eticap AR 4T 2S 4 Heads 2500 Bph

Labeling Machine

Ref: ET144

Used Bottle Labeler Eticap AR 4T 2S 4 Heads 2500 Bph

In storage
Manufacturer:
Eticap
Model:
AR 4T 2S
Year:
1997
Speed:
2500 BPH
Containers:
Glass
Formats:
0.75 L, 1.0 L

Details

Safety features:
Yes
Manuals:
Yes
Electrical data:
V: 380V
hz: 50hz
Weight:
1200 kg
Rotation direction:
Clockwise
No. of plates:
4
Plate movement:
Geneva drive
Number of stations:
2
Labeling method:
Adhesive
Label placement:
Front, Back, Neck ring label
Label adjustment:
Manual
Head adjustment:
Manual
Optical centering system:
Mechanical

Labeling Machine

Ref: ET144

Used Bottle Labeler Eticap AR 4T 2S 4 Heads 2500 Bph

In storage
Manufacturer:
Eticap
Model:
AR 4T 2S
Year:
1997
Speed:
2500 BPH
Containers:
Glass
Formats:
0.75 L, 1.0 L
Request information
Further information, photos and layouts are available for each machine. Click on Request information in case you need more data.
DISCLAIMER: The operational status of each machine is monitored on a monthly basis. Therefore we will promptly update the current status of the machine only at the time of your request.
Request information
Further information, photos and layouts are available for each machine. Click on Request information in case you need more data.
DISCLAIMER: The operational status of each machine is monitored on a monthly basis. Therefore we will promptly update the current status of the machine only at the time of your request.

Related machines

Description

Used Labeler Eticap AR 4T 2S

Labeling machine brand eticap system 4 heads

3 adhesive stations

Stainless steel faired frame

Accident protections

2 bottle sizes

Clockwise rotation

Variable speed

Year of construction: 2004 marked c e

Production 2,500 bots. now

Voltage 380 volt three-phase + neutral — 50 Hz

Bottle formats: 0.75 – Bordolese 0.75 – diameter 75/76 conical 0.75 L. High Belly 91 Bottom 82

Bottle orientation: Mechanically, turn of the plates and through maltese crosses

Manual head adjustment

Variable speed with inverter

Complete with manual
